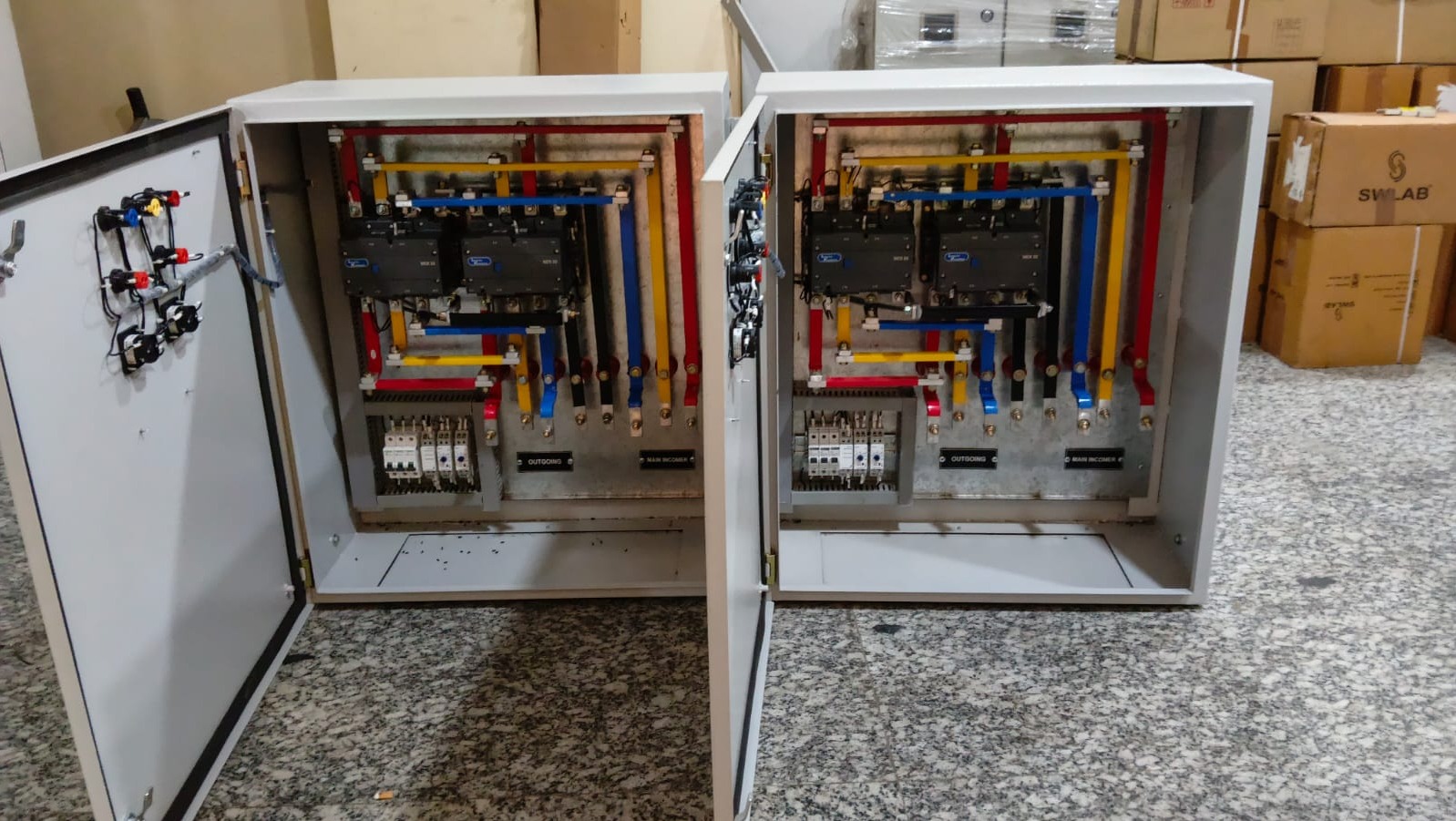

Electrical Phase Sequence Panel – Overview
An Electrical Phase Sequence Panel is a protective and monitoring device used to ensure the correct sequence of three-phase power supply (R-Y-B). It prevents equipment damage caused by phase reversal, phase failure, or voltage imbalance in industrial and commercial electrical systems.
Key Functions
Phase Sequence Monitoring – Ensures correct R-Y-B sequence
Phase Failure Protection – Detects loss of any phase
Phase Reversal Protection – Prevents wrong phase connection
Voltage Monitoring – Monitors over-voltage and under-voltage conditions
Automatic Tripping – Disconnects supply in case of fault
Main Components
Phase sequence relay
MCB / MCCB for protection
Contactor for switching
Indication lamps (R, Y, B phases)
Digital/analog voltmeter (optional)
Control wiring and terminals
Benefits
Protects expensive equipment from damage
Increases system reliability and safety
Reduces maintenance costs
Ensures uninterrupted operation
Easy installation and operation
Why Choose Our Phase Sequence Panels
High-quality components
Custom-built design as per client requirement
Tested for safety and performance
Suitable for all industrial applications
Competitive pricing in Noida and Delhi NCR
